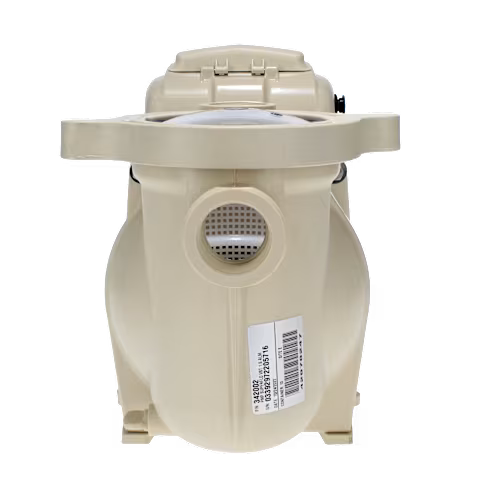

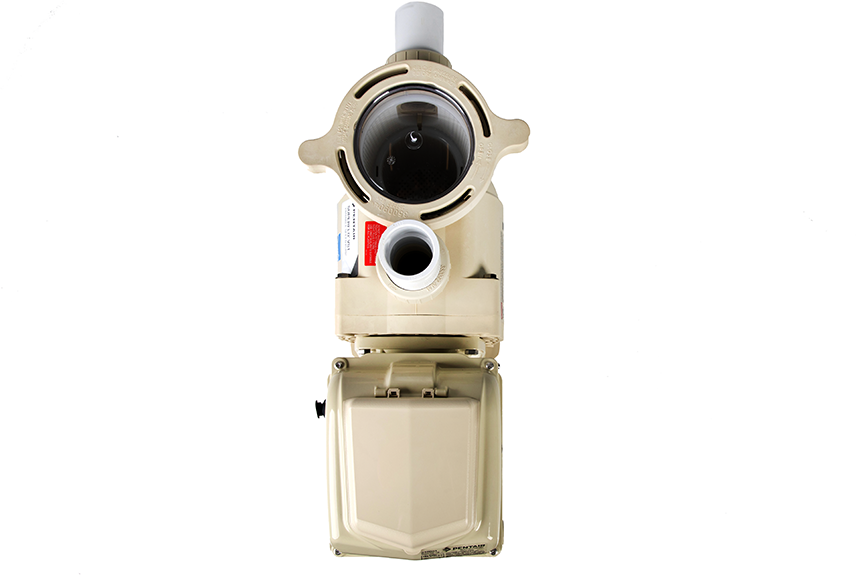

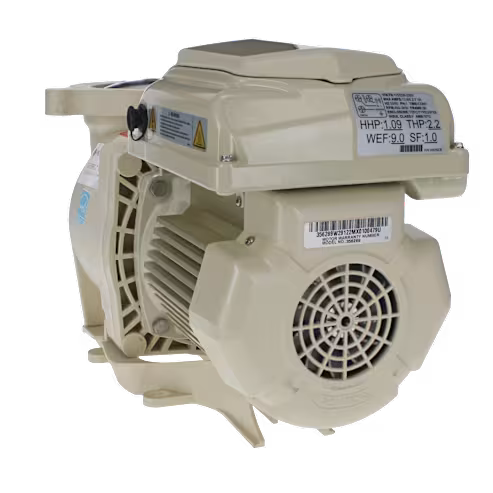

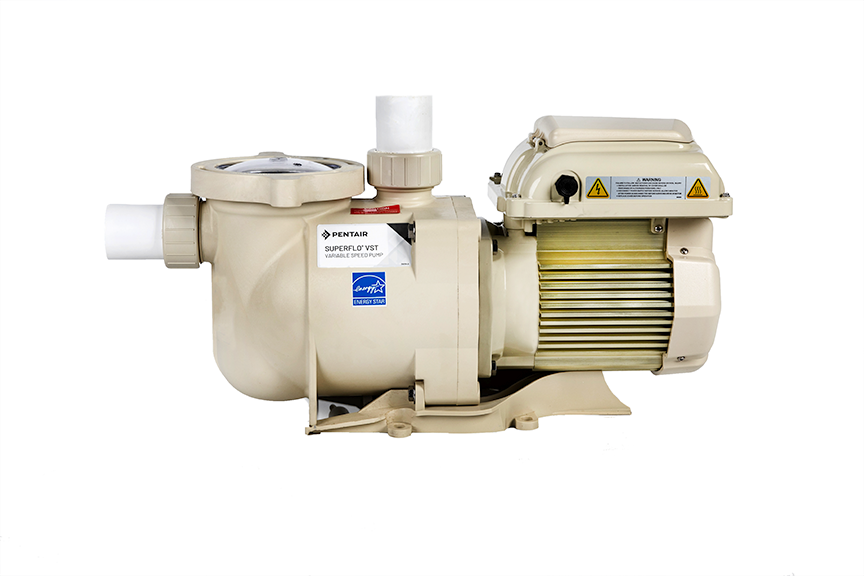

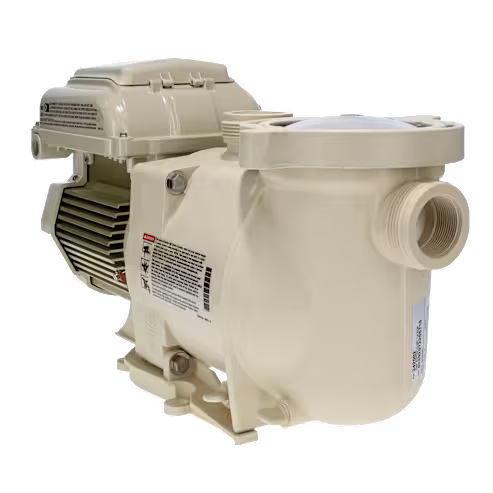

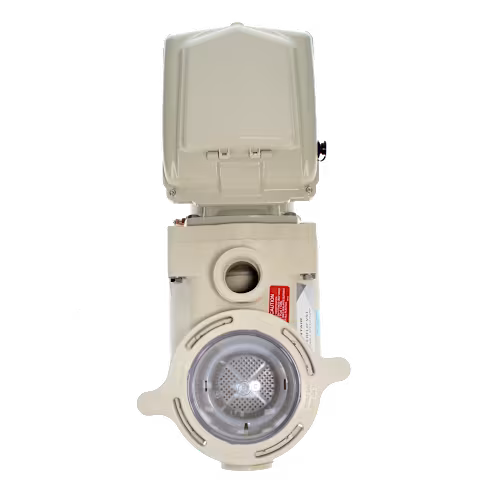

The Pentair SuperFlo VST (part number 342002) is a 2.2 THP variable-speed pool pump for new and replacement residential installations. Its permanent-magnet TEFC motor runs from 600 to 3450 RPM, delivering up to 80% energy savings compared to single-speed pumps while meeting DOE efficiency standards.
Key Features
-
Variable speed: Adjusts speed to system demand for up to 80% energy savings versus single-speed pumps.
-
Permanent-magnet TEFC motor: Runs cooler and quieter with minimal vibration.
-
Onboard controller: Built-in keypad with speed presets and 24-hour clock.
-
Automation compatible: Works with Pentair IntelliCenter, IntelliTouch and EasyTouch controllers.
-
Dual voltage: Automatically recognizes 115V or 230V for simple wiring.
Specifications
| Brand |
Pentair |
| Part Number |
342002 |
| Product Line |
SuperFlo VST |
| Horsepower |
2.2 THP |
| Speed Range |
600–3450 RPM |
| Voltage |
115/208-230V, single phase, 60 Hz |
| Motor Enclosure |
TEFC |
| Connections |
1.5" / 2" union ports |
| Energy Compliance |
DOE |
What's Included
- SuperFlo VST variable-speed pump
- Union fittings (2)
- Installation manual and owner's guide
Before You Order
Confirm your supply voltage, single-phase power and 1.5" or 2" plumbing before ordering. This pump is not for three-phase commercial systems. Questions? Call 855-677-7796 or contact us with your model and part number.
Shipping Box Dimensions
29 x 13 x 16 in
Dimensions refer to the shipping carton.
