The Hayward OmniPL 4-Relay Automation System (HLPLUS4W) combines pool and spa automation, web and app control, and integrated salt chlorination in one package. Built on the OmniLogic platform, it includes the TCELLS340 TurboCell S3 salt cell for pools up to 40,000 gallons and an outdoor touchscreen controller. It is designed for new in-ground pool and spa construction.
Key Features
-
Integrated Salt Chlorination: Includes the TCELLS340 TurboCell S3 for pools up to 40,000 gallons, with output managed from the controller or app.
-
Web & App Control: Built-in Wi-Fi and Ethernet for OmniLogic app access, plus support for compatible voice-control platforms.
-
Touchscreen Controller: Weather-resistant external touchscreen with a 15' cord.
-
Expandable Relays: 4 high-voltage relays included, expandable to 8 with optional HLRELAY and HLH485RELAY modules.
-
Pump Control: Communicates directly with up to 8 compatible Hayward variable-speed pumps without using relays.
-
Equipment Control: Up to 4 valve actuators and up to 2 heaters or low-voltage devices.
-
ColorLogic Lighting: OmniDirect Mode for added colors, shows, dimming and show-speed control on compatible fixtures.
Specifications
| Brand |
Hayward |
| Product Line |
OmniPL |
| Part Number |
HLPLUS4W |
| Salt Cell |
TCELLS340 TurboCell S3 |
| Pool Size |
Up to 40,000 gallons |
| Relays |
4 included; up to 8 with expansion |
| Subpanel |
100 A, up to 8 circuit breakers |
| Controller Cord |
15' |
| Product Dimensions |
24.6" L x 19.8" W x 11.6" H |
| Warranty |
3 years parts / 1 year labor |
| UPC |
610377416252 |
What's Included

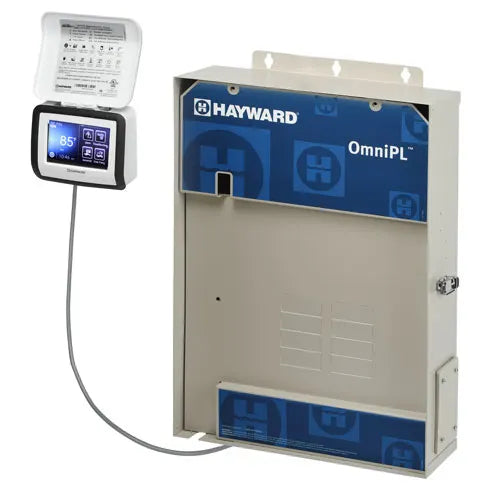

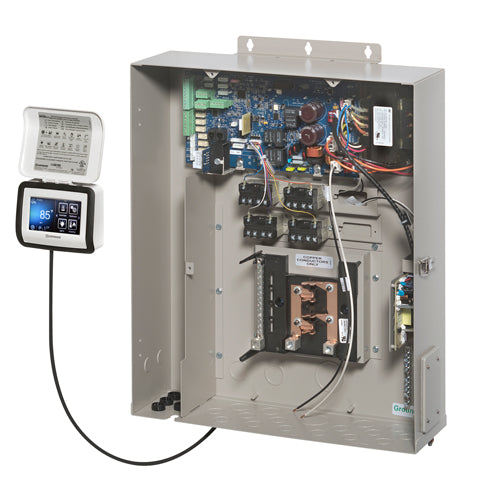

- OmniPL wiring and automation panel with 4 high-voltage relays
- 100 A service subpanel
- External touchscreen controller with 15' cord

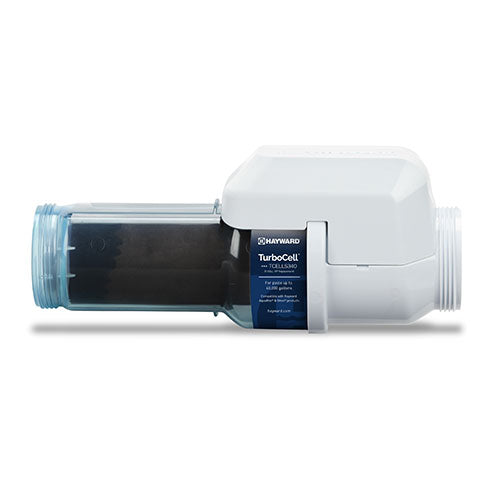

- TCELLS340 TurboCell S3 salt cell
- Installation and operating documentation
Before You Order
Confirm the TCELLS340 is sized for your pool, that 4 relays are enough (or expansion modules are selected), and that your electrical service supports the 100 A subpanel. Circuit breakers, valve actuators, remotes and extra relays are sold separately; check whether your package includes the flow switch and cell plumbing kit. Installation requires a pool professional and licensed electrician. Questions? Call 855-677-7796 or contact us with your model and part number.
