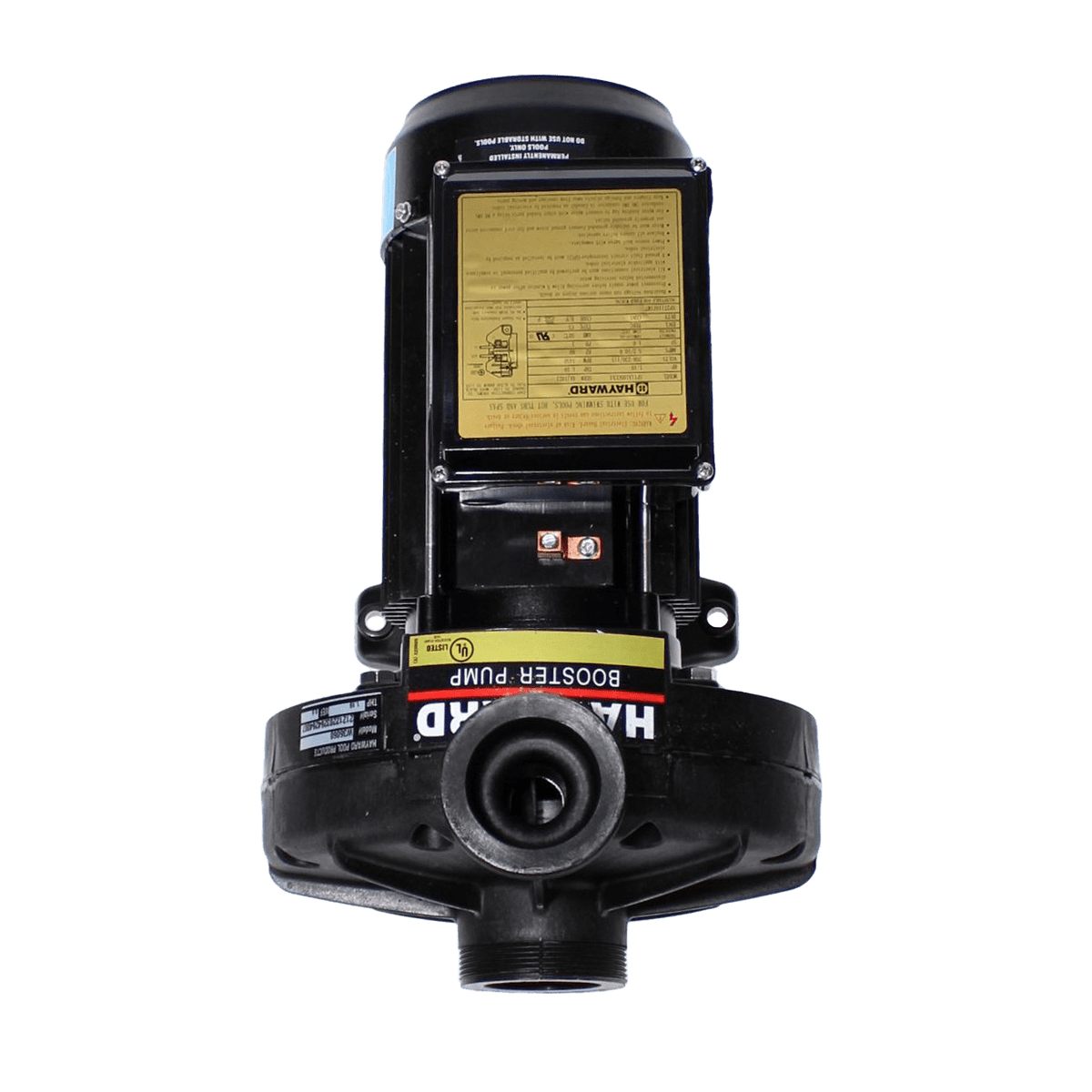

The Hayward Booster Pump (W36060) supplies the extra water pressure that pressure-side automatic pool cleaners need to move and pick up debris. This 3/4 HP pump is built for in-ground pool cleaner systems on a dedicated pressure cleaner line and is the replacement for the Hayward 6060 booster pump. It suits both new pressure-cleaner installations and retrofits.
Key Features
-
3/4 HP Performance: Provides the added pressure to power compatible pressure-side cleaners.
-
TEFC Motor: Totally enclosed, fan-cooled motor designed for quiet, efficient operation.
-
Dual Voltage: Runs on 115/208–230V for flexible equipment pad wiring.
-
Energy Efficient: Designed to use up to 40% less electricity than many other booster pumps.
-
Retrofit Friendly: Includes 1.5" plumbing unions and 3/4" hose barb union adapters.
-
Flexible Discharge: Discharge can be configured vertically or horizontally.
-
Elevated Base: Tall mounting base improves motor ventilation and helps protect against minor pad water.
Specifications
| Brand |
Hayward |
| Part Number |
W36060 |
| Replaces |
6060 |
| Horsepower |
3/4 HP |
| Voltage |
115/208–230V |
| Motor Type |
TEFC |
| Connections |
1.5" plumbing unions; 3/4" hose barb adapters |
| Self-Priming |
No |
| Warranty |
1-year limited |
| UPC |
610377390378 |
What's Included
- W36060 booster pump
- 1.5" plumbing union fittings
- 3/4" hose barb union adapters
Before You Order
Confirm your pressure-side cleaner requires a booster pump and that your pad supports 115V or 208–230V wiring. This pump is not self-priming and must run only while the main filtration pump is operating. Questions? Call 855-677-7796 or contact us with your model and part number.
