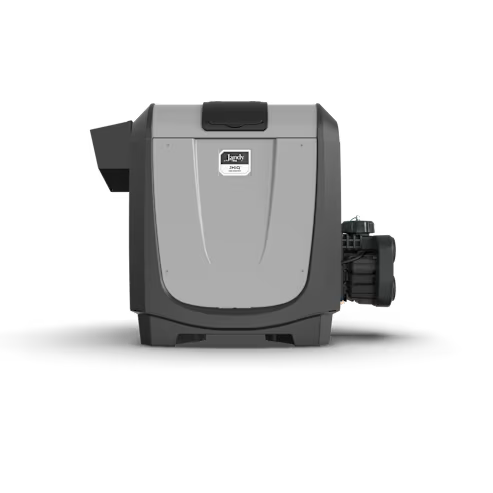

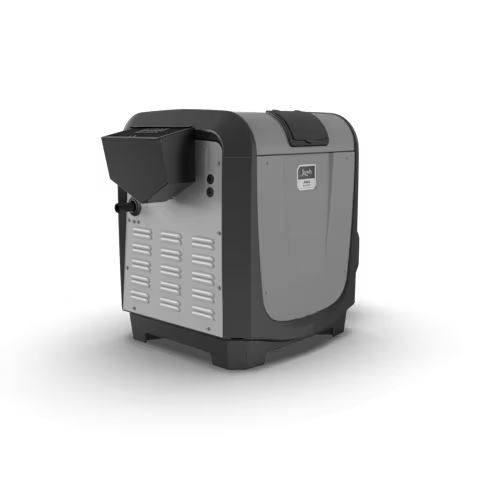

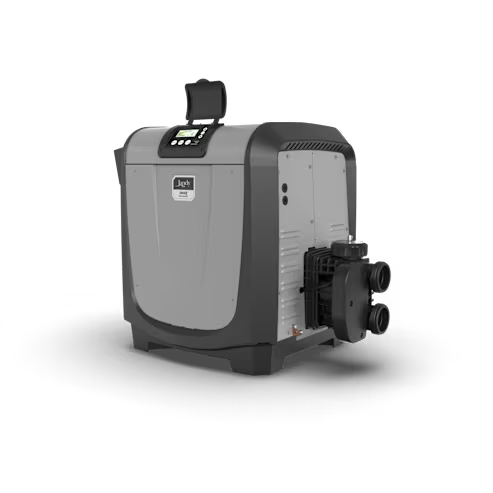

The Jandy JXiQ Natural Gas Pool Heater with VersaFlo (JXIQ260NK) is a 260,000 BTU, Low-NOx pool and spa heater in an ultra-compact, energy-efficient design. The integrated VersaFlo bypass and copper heat exchanger provide fast heat-up and reduced operating costs. It suits residential pools, pool/spa combinations and replacements where a small footprint helps.
Key Features
-
260K BTU Output: Fast, consistent heating for pools and spas.
-
VersaFlo Bypass: Routes water around the heat exchanger when heating isn't needed, lowering pump energy use.
-
Copper Heat Exchanger: Reliable heat transfer in standard pool water conditions.
-
Ultra-Compact: One of the smallest footprints in its class for easier installation and service.
-
Low-NOx Compliant: Meets strict air-quality regulations.
-

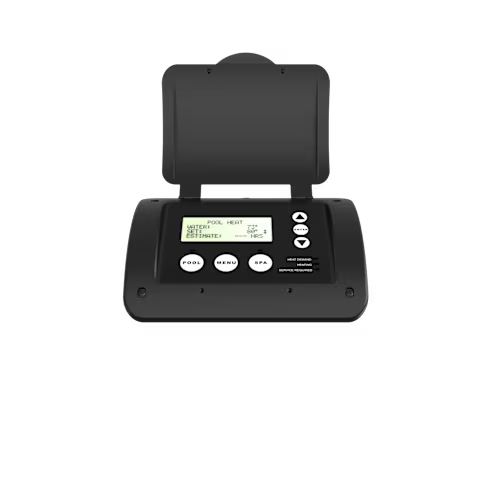

Digital Controls & Quiet Operation: Precise temperature management with reduced noise.
Specifications
| Brand |
Jandy |
| Product Line |
JXiQ |
| Part Number |
JXIQ260NK |
| BTU |
260,000 |
| Fuel Type |
Natural gas |
| Heat Exchanger |
Copper |
| Emissions |
Low-NOx |
| Pool Size |
Approx. 20,000–25,000 gallons (varies by climate and cover use) |
What's Included
- JXiQ 260K BTU natural gas heater with integrated VersaFlo bypass
- Installation/operation manual
- Mounting hardware
Before You Order
Confirm your fuel is natural gas, your gas line is sized for 260,000 BTU, and venting meets local codes. For salt water or aggressive water chemistry, a cupronickel heat exchanger version is recommended instead. Questions? Call 855-677-7796 or contact us with your model and part number.
Shipping Box Dimensions
39.8 x 23.3 x 28.5 in
Dimensions refer to the shipping carton.
