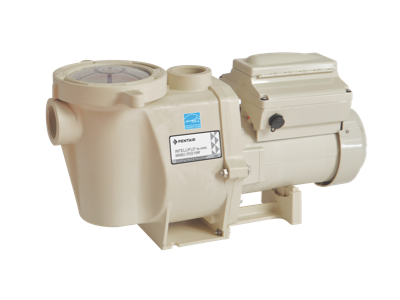

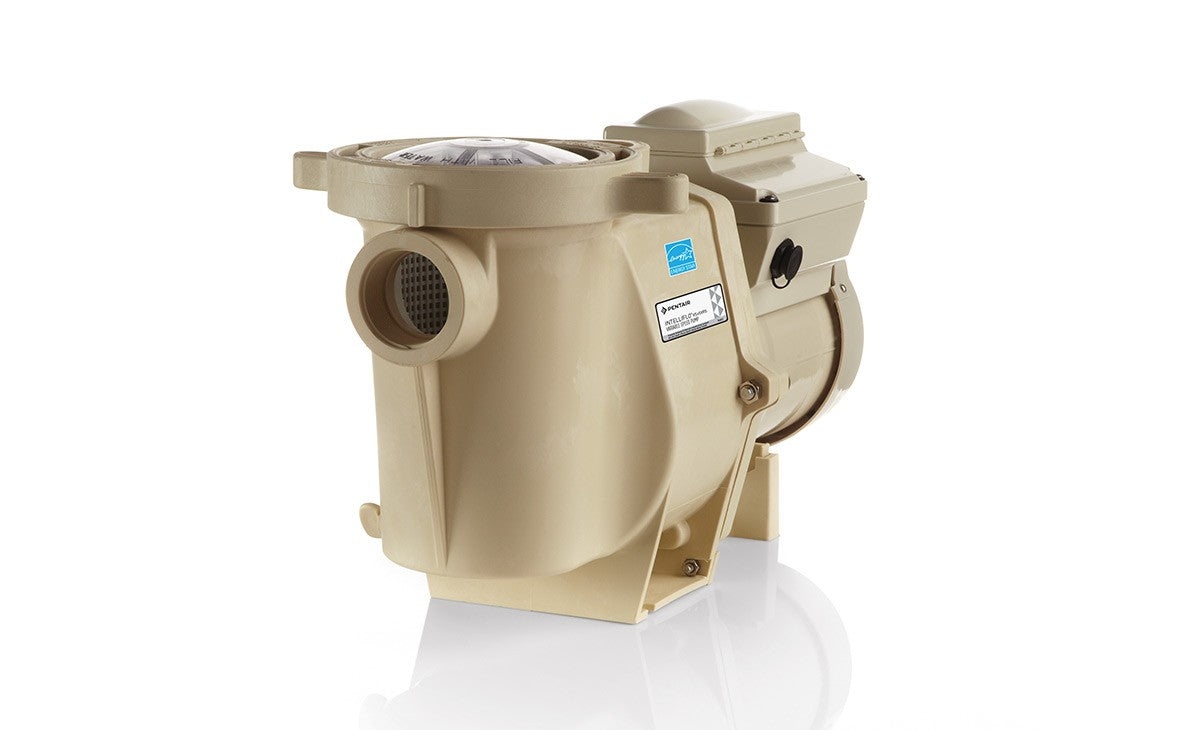

The Pentair IntelliFlo VS+SVRS Variable-Speed Pool Pump (part number 011057) combines variable-speed efficiency with a built-in Safety Vacuum Release System that detects drain or suction blockages and shuts off the pump. It suits residential pools that need SVRS protection along with flexible speed control.
Key Features
-
Built-In SVRS: Detects suction blockages and shuts off to help prevent entrapment.
-
Variable-Speed Motor: Permanent-magnet TEFC motor with eight programmable speeds.
-
Energy Savings: Up to 90% lower energy use than single-speed pumps.
-
Programmable Speeds: Custom settings for filtration, spa jets, water features and heating.
-

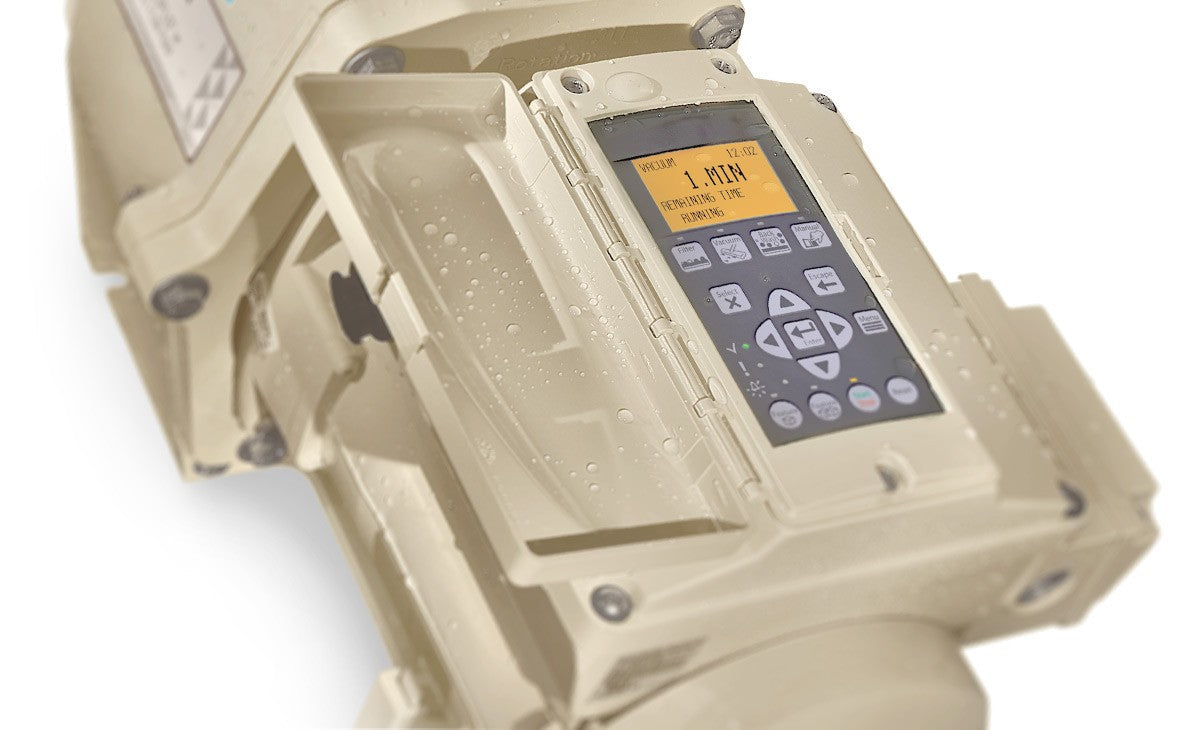

Password Lock-Out: Protects speed settings from unauthorized changes.
-
Compliance: ENERGY STAR certified; SVRS meets ASME A112.19.17.
Specifications
| Brand |
Pentair |
| Part Number |
011057 |
| Max Rated THP |
3.95 |
| Voltage |
230V single phase, 60 Hz |
| Speed Range |
600–3,450 RPM |
| Motor |
Permanent magnet, TEFC |
| Connections |
2" unions |
| Warranty |
2 years when professionally installed |
What's Included
- IntelliFlo VS+SVRS pump
- (2) union fittings and seals
- Installation and owner's manual
- Quick-start guide
Before You Order
Confirm horsepower, that you have 230V single-phase power, and that your plumbing matches the 2" union connections. Not for 3-phase power or 3" and larger commercial plumbing. Questions? Call 855-677-7796 or contact us with your model and part number.
Shipping Box Dimensions
28 x 12 x 17 in
Dimensions refer to the shipping carton.
