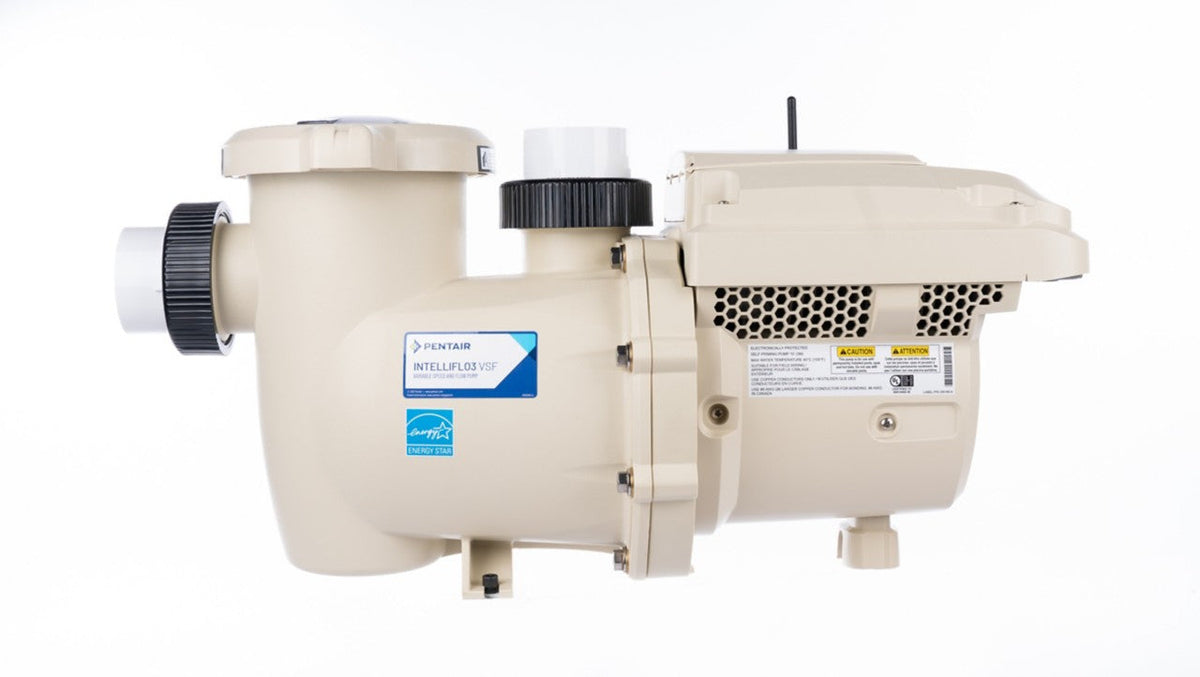

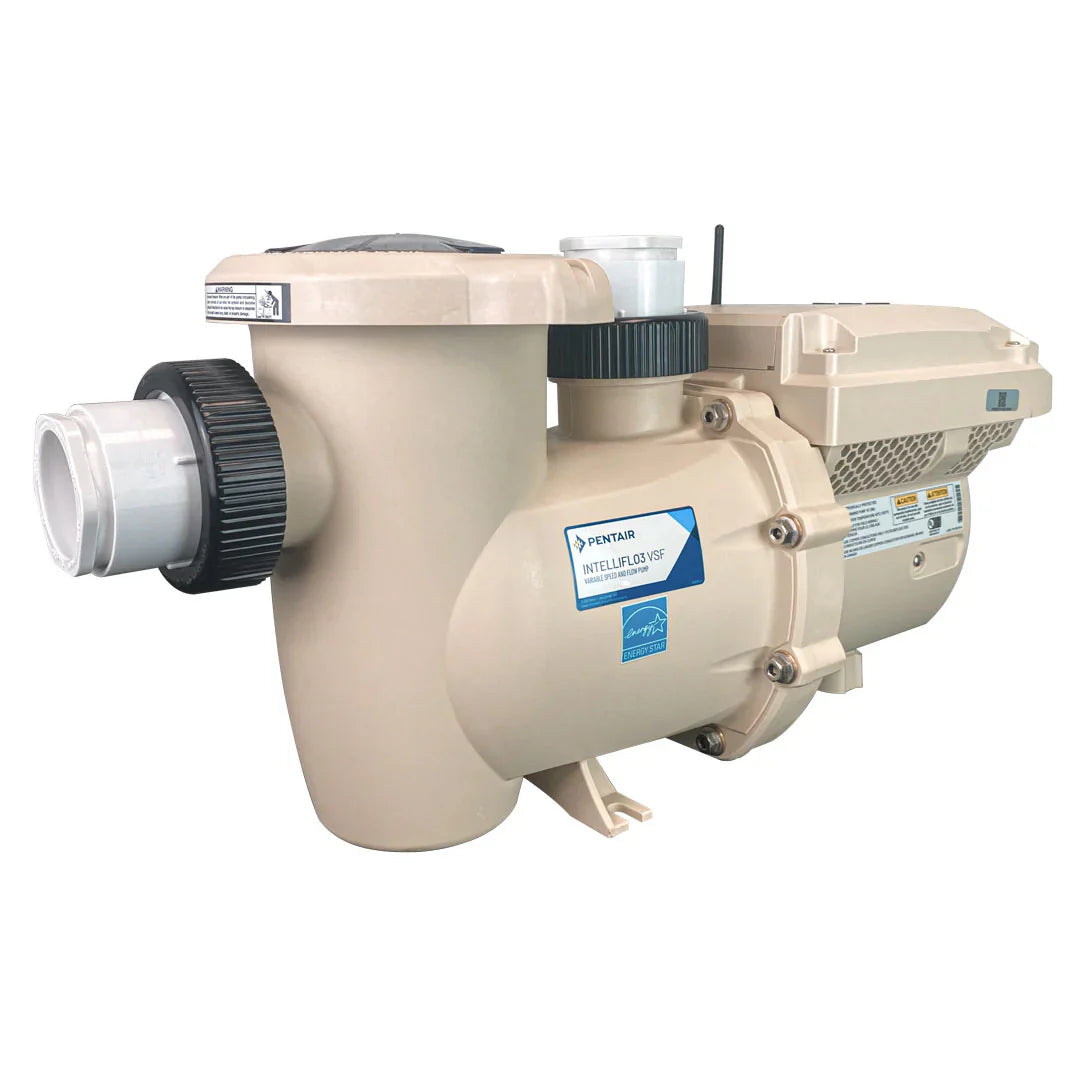

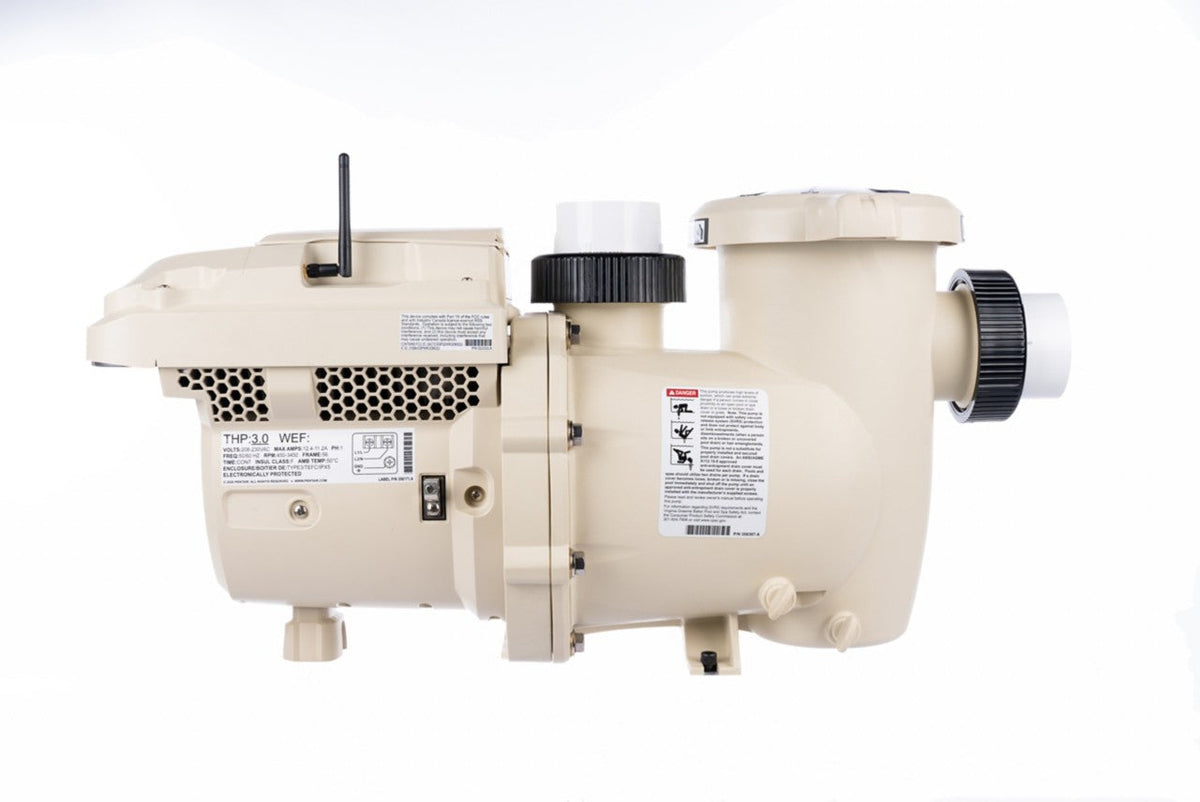

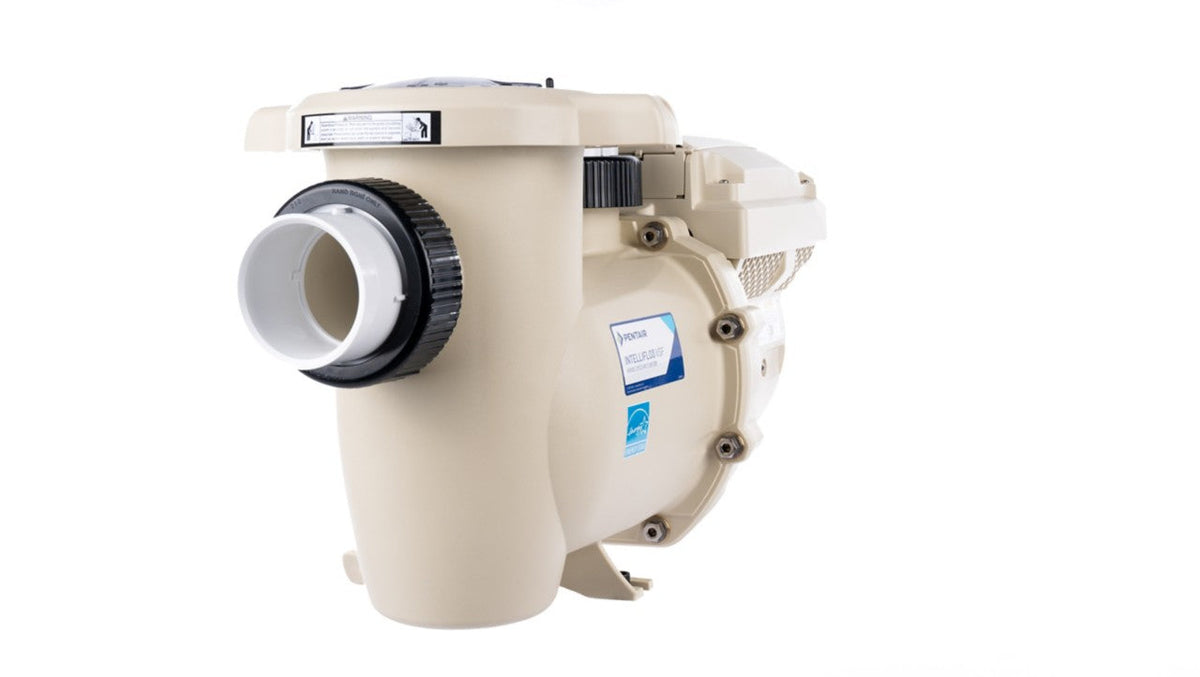

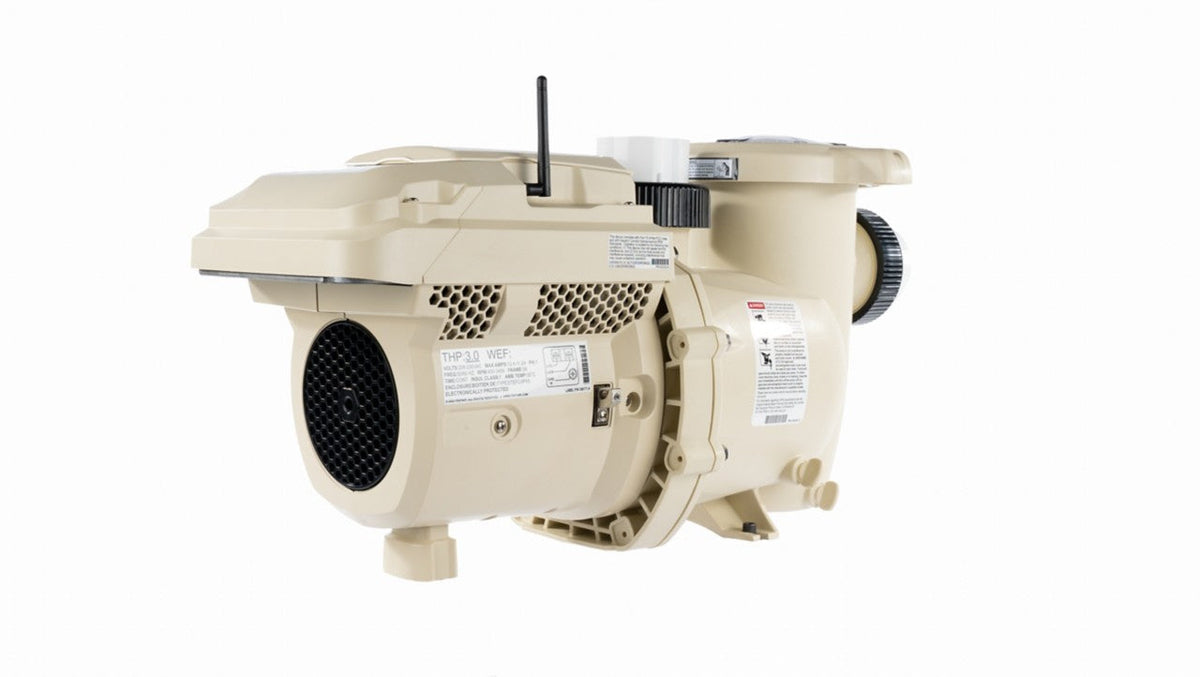

The Pentair IntelliFlo3 VSF Variable-Speed Pool Pump (part number 011076) is a 3.0 HP variable speed and flow pump with built-in WiFi and a pre-installed I/O relay board. It automatically adjusts speed to hold a constant flow and connects to the Pentair Home app, making it a strong fit for residential pools upgrading to smarter, quieter circulation.
Key Features
-
Variable Speed & Flow: Adjusts speed automatically to maintain constant flow as conditions change.
-
Built-In WiFi: Setup, scheduling and monitoring through the Pentair Home app.
-
I/O Relay Board Included: Connects external equipment such as lights, chlorinators or heaters.
-
TEFC Permanent-Magnet Motor: Efficient, quiet operation.
-
Energy Savings: DOE and ENERGY STAR compliant, with up to 90% lower energy use than single-speed pumps.
-
Automation Compatible: Works standalone or with IntelliCenter, IntelliTouch and EasyTouch.
Specifications
| Brand |
Pentair |
| Part Number |
011076 |
| Horsepower |
3.0 HP |
| Voltage |
230V single phase, 60 Hz |
| Speed Range |
450–3,450 RPM |
| Motor |
Permanent magnet, TEFC |
| Communication |
WiFi, RS-485, I/O relay board |
| Connections |
2" unions |
| Warranty |
3 years when professionally installed |
What's Included
- IntelliFlo3 VSF 3.0 HP pump
- I/O relay board (pre-installed)
- (2) union fittings
- Installation manual and quick-start guide
Before You Order
Confirm horsepower, that you have 230V single-phase power, and that your plumbing matches the 2" union connections. Not for three-phase power. Questions? Call 855-677-7796 or contact us with your model and part number.
Shipping Box Dimensions
30 x 17 x 18 in
Dimensions refer to the shipping carton.
